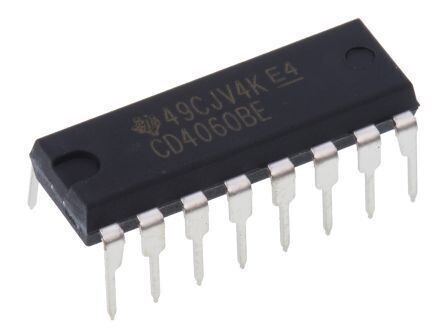

Texas Instruments CD4060BEE4 14-stage Binary Counter, Up Counter, 3 → 18 V, 16-Pin PDIP

Product Details
4000 Series Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters & Shift Registers from the 4000 Series CMOS Logic Family

4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V

Specifications

Attribute Value

Package Type PDIP

Logic Function Counter, Divider

Number of Stages 14

Logic Family 4000

Mounting Type Through Hole

Counter Type Binary

Operation Mode Up Counter

Number of Elements 1

Pin Count 16

Minimum Operating Supply Voltage 3 V

Maximum Operating Supply Voltage 18 V

Dimensions 19.3 x 6.35 x 4.57mm

Length 19.3mm

Width 6.35mm

Triggering Type Negative Edge

Minimum Operating Temperature -55 °C

Direction Type Uni-Directional

Height 4.57mm

Maximum Operating Temperature +125 °C
