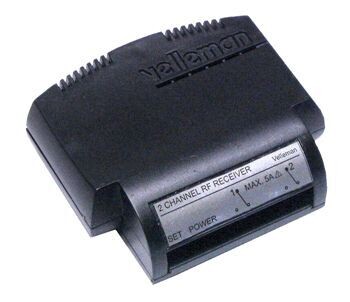

Velleman VM130 2-CHANNEL RF REMOTE CONTROL SET

Features

compatible with:

VM108: 2-CHANNEL RANDOM CODE RF REMOTE TRANSMITTER

VM130T: 2-CHANNEL RF REMOTE CONTROL TRANSMITTER

VM109: 2-CHANNEL RF REMOTE CONTROL SET

receiver:

two relay contact outputs

store up to 31 transmitters

toggle or pulse function selectable per output

pulse function with turn off timer

LED indicators for: output, power and timer function

selectable internal heating resistor for cold environments

transmitter:

generates unique 32-bit code

more than 1.000.000.000 unique codes

code can easily be changed for safety purposes

choose continuous or 'burst' transmission

LED - transmit indicator

limited compatibility with older K6706 - K6706A - K6706B/G

R&TTE compliant ( ETS 300-220) (approved only for EU countries).

Optional transmitter: type VM130T

Specifications

receiver:

power supply: 9 to 13Vac or 10 to 15Vdc

consumption : 130mA max. / 20mA standby (heating off)

relay contacts NO / NC: 5A (resistive load) each

433MHz operation

selectable timers per output: 0.5s, 5s, 30s, 1min, 5min, 15min, 30min and 60min

Heating option for use in cold environments

open field range of up to 30m possible

external antenna

dimensions: 80 x 70 x25mm / 3.15 x 2.75 x 0.98"

transmitter:

power supply: 12V battery (included)

V23GA / GP23GAC

433MHz operation

dimensions: 63 x 40 x 16mm (2.5" x 1.6" x 0.6")

Extras

Note

VM130 will replace VM109

Data Sheet
