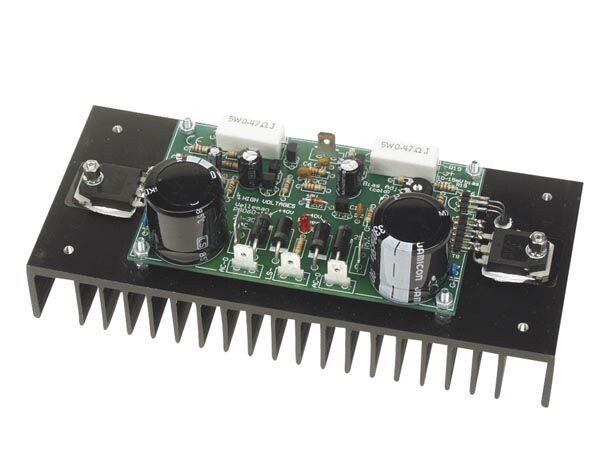

Velleman VM100 200W POWER AMPLIFIER MODULE

Features

excellent value for money

fully discrete design using Epitaxial Darlington transistors

DC supply circuit on board with LED indication

ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.

comes fully adjusted and tested

overload and short-circuit protection

Specifications

200W music power @ 4 ohm load

100Wrms power @ 4 ohm load

70Wrms power @ 8 ohm load

distortion: 0.02% @ 1KHz/10W

damping factor: >800

frequency response: 3Hz to 200KHz (-3dB)

sensitivity: 0.6Vrms

signal to noise ratio: 115dB

power supply: 25-30Vac 120VA

PCB dimensions: 107x62mm (approx.)

Also available in Kt Form CLICK HERE

Reccomended TOROIDAL TRANSFORMER 225VA 2 x 30V / 2 x 3.75A Special Order CLICK HERE Price €75.00

Reccomended Heat Sink CLICK HERE

Data Sheet
