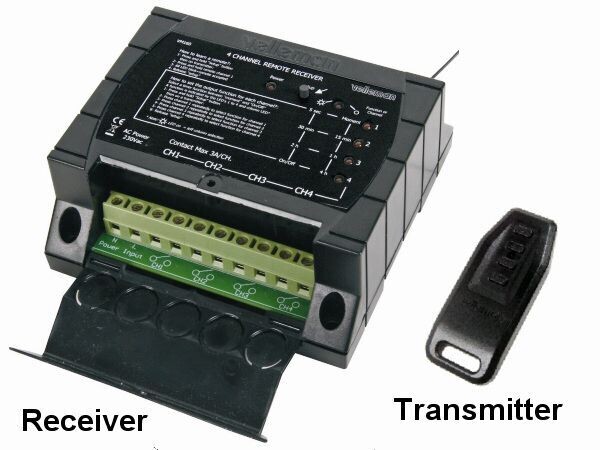

Velleman VM160 4-CHANNEL RF REMOTE CONTROL SET

Can be used as remote or codelock security receiver/transmitter

Works with Velleman :

- VM160T hand-held transmitter (included)!

- VM160DT desktop transmitter (not for USA)

Features

4 independent relay contacts, 3A each

various timer possibilities per channel

pulse or toggle operation

can learn up to 31 transmitters

automated learning function for transmitters

LED indication per output

Din rail fixation (6 modules wide)

works with:

VM160T: hand-held transmitter (included)

VM160DT: desktop transmitter (not for USA)

Specifications

use 32-bit code technology

more than 1.000.000.000 unique codes

code can easily be changed for safety purposes

frequency: 433MHz

receiver: R&TTE compliant (ETS 300-220)*

power supply: 230Vac

relay contacts N.O.: 5A (3A inductive load)

selectable timers/output: 0.5s (moment) - 5s - 15min. - 30min. - 1h - 2h - 4h & on/off

open field range of up to 30m possible

external antenna wire

transmitter battery: V23GA / GP23GAC included

receiver dimensions: 108 x 102 x 45mm / 4.25 x 4 x 1.77"

transmitter dimensions: 88 x 37 x 13mm / 3.46 x 1.45 x 0.5"

Extras

* ETS 300 -220

only for EU countries

Data Sheet
