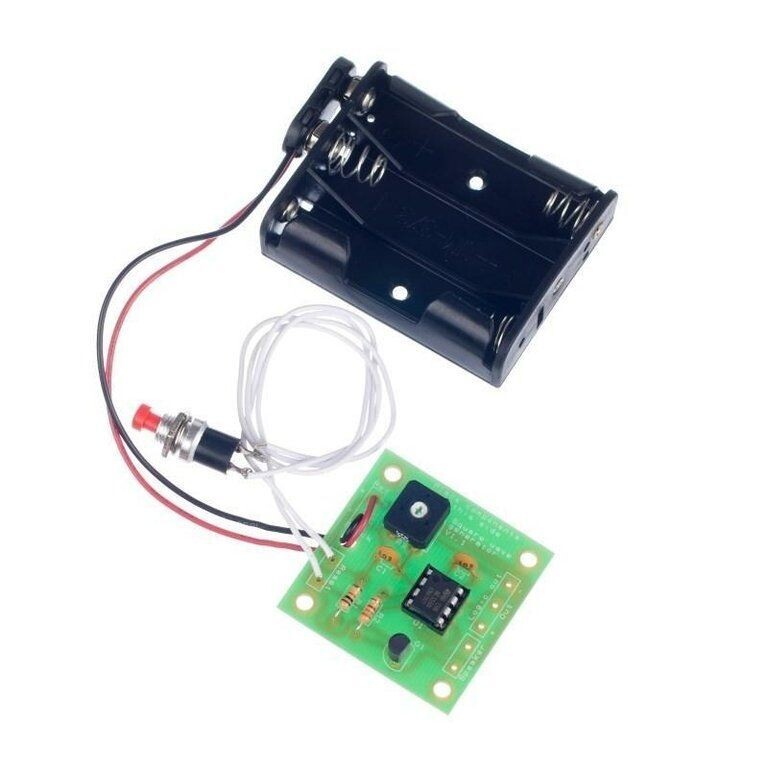

Kitronik 555 Timer Astable (Tone Generator) Kit

Description

This kit is perfect for GCSE students needing to use a 555 timer in its astable mode, where it produces a square wave output. The frequency of which is adjustable via the variable resistor. The board has a choice of two outputs. The logic output can be used to drive another IC or a speaker can be connected so the tone is heard (e.g. a door bell).

The push button switch connects to the reset line such that the IC is only active when the button is pressed.

Features:

The 555 Timer Astable (Tone Generator) Kit produces a square wave output.

The frequency of the aquare wave is adjustable via the variable resistor.

Contents:

1 x 555 Timer IC.

1 x 8 Pin IC Holder.

1 x 3.3KΩ Resistor.

1 x 10KΩ Resistor.

1 x 47KΩ Potentiometer.

2 x 10nF Ceramic Capacitors.

1 x BC547 NPN Transistor.

1 x Push To Make Switch.

1 x PP3 Clip Lead.

1 x 3AA Battery Holder.

0.5m Connecting Wire

1 x Tone Generator PCB

Dimensions:

PCB Length: 40mm.

PCB Width: 40mm.

Requires:

3 x AA Batteries.

Soldering Iron.

Solder.

Wire Cutters.

Wire Strippers.

Resources: Build Instructions.pdf_icon.gif
Teaching Resources.pdf_icon.gif

Note:

This kit requires soldering.

Requires x 3 x AA Batteries. and depending upon desired use a speaker, both available separately.
