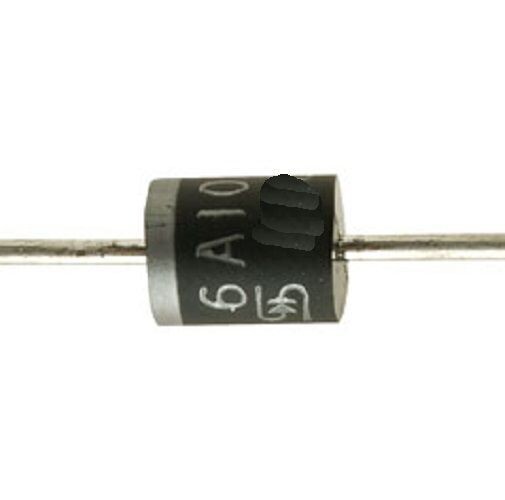

6A6 SILICON RECTIFIER

Maximum Ratings and Electrical Characteristics @25°C unless otherwise specified

Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, halfwave, 60Hz, resistive or inductive load.

Characteristic Symbol 6A05 6A1 6A2 6A4 6A6 6A8 6A10 Unit
Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V
Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V
Maximum Average Forward Rectified Current
9.5mm lead length @ TA = 75°C (See Fig. 1) I(AV) 6.0 A
Peak Forward Surge Current 8.3 ms single half
sine-wave superimposed on rated load
(JEDEC method)
IFSM 400 A
Maximum Instantaneous Forward Current at 6.0A DC VF 0.90 V
Maximum DC Reverse Current @ TA = 25C
at Rated Blocking Voltage @ TA = 100C IR 10
100 µA
Operating and Storage Temperature Range TJ, TSTG -65 to +175 °C
