Kitronik Breadboard breakout for the BBC micro:bit

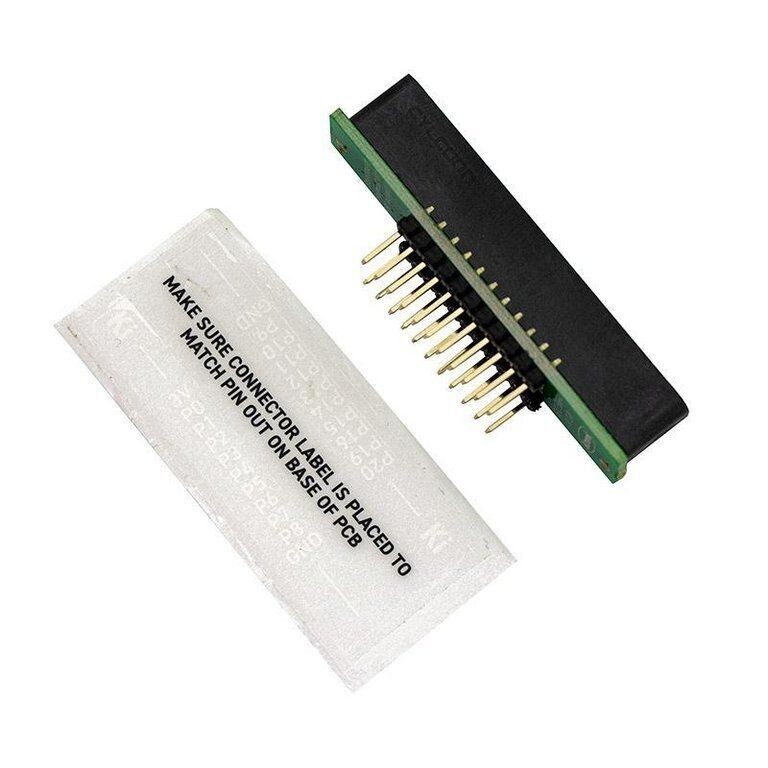

DescriptionThe Breadboard breakout for the BBC micro:bit allows the user to plug a BBC microbit into a standard 2.54mm pitch breadboard. Two 11 way pin headers are used to make connections into the breadboard.The micro:bit slots into the edge connector on the top side of the PCB. No extra tools are required for installation. The front of the BBC micro:bit (the side with the LEDs) should be inserted facing the same side as the 3V pin.The edge connector has connections on only one side, so if the BBC micro:bit is inserted in reverse orientation, it will not work.The PCB is designed to plug across the middle slot of a breadboard, the same placement as an IC component.Features:
The microbit slots into the on-board edge connector.
This breakout board plugs straight across the middle slot of a standard 2.54mm pitch breadboard, just like an IC component.
The microbits pins are broken out to 2 x 11 way header pins.
Use jumper wires to connect from the header pins to the breadboard.
No tools or soldering required for installation.
microbit to breadboard prototyping made easy.
Contents:
1 x Breadboard breakout for the BBC micro:bit.
Dimensions:
Length: 58.4mm.
Width: 12.8mm.
Height: 20.76.
Pin Pitch: 2.54mm VIDEO Requires:
BBC micro:bit.
Suitable Breadboard.
M/F Jumper Wires.
