Our Store

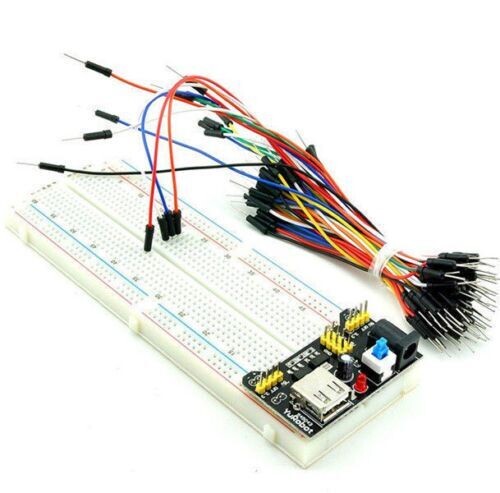

Breadboard with Power , DC , Jumper Wires

€12.59
In stock: 14 available
Product Details

Velleman SOLDERLESS BREADBOARD - 830 HOLES and comes with MB102 Breadboard Power Supply Module, Velleman WJW009 AWG JUMPER WIRES SET - one pin MALE TO MALE (65 pcs) and also a Kitronik 9V PP3 Battery Clip Lead to 2.1mm DC

Package Contains.

Velleman VTBB2 SOLDERLESS BREADBOARD - 830 HOLES
Features

base socket (see figure): twin columns of 5 x 63 terminals
bus strip (see figure): 4 buses of 25 connected terminals are arranged in 4 rows
Specifications

material:
external body is made of ABS
the internally interconnected clips consist of phosphor-bronze nickel-plated spring clips
base socket: 1
bus strip: 2
tie points: 830
14-pins IC capacity: 9
binding post: 0
dimensions: 165.5 x 56.5 x 8.5 mm
weight: 81 g

3.3V 5V MB102 Breadboard Power Supply Module For Arduino Breadboard
Also can be used for any electronic project as it fits neatly on your Breadboard
Size:53mm * 35mm

Bread plate special power supply module, compatible with 5 V, 3.3 V

Apply to MB102 bread plate

Input voltage: 6.5-12 V (DC) or USB power supply

Output voltage: 3.3 V, 5 V can switch

The maximum output current: < 700 ma

Two way up and down independent control, can switch to 0 V, 3.3 V, 5 V

The onboard two sets of 3.3 V, 5 V DC output pin

Velleman WJW009 AWG JUMPER WIRES SET - one pin MALE TO MALE (65 pcs)
Features

65 pcs of 22 AWG jumper wire
colours: red - black - white - yellow - green - orange - blue
can be re-used
Specifications

length and quantity: in different colours
100 mm: 45 pcs
150 mm: 10 pcs
200 mm: 5 pcs
250 mm: 5 pcs

Kitronik 4132 9V PP3 Battery Clip Lead to 2.1mm DC Connector
Versatile PP3 adaptor, plug a 9V battery into one end and connect the other end to anything with a 2.1mm, centre-positive barrel jack.
A PP3 to 2.1mm centre-positive barrel jack DC connector, useful for connecting a 9V battery, or any of our battery cages with clip, to projects such as an Arduino.

Features:

65mm cable length.
2.1mm centre positive barrel jack.
Contents:

1 x 9V PP3 Battery Clip Lead to 2.1mm DC Connector.
Dimensions:

Cable Length: 65mm.
External Diameter: 5.5mm.
Internal Diameter: 2.1mm
