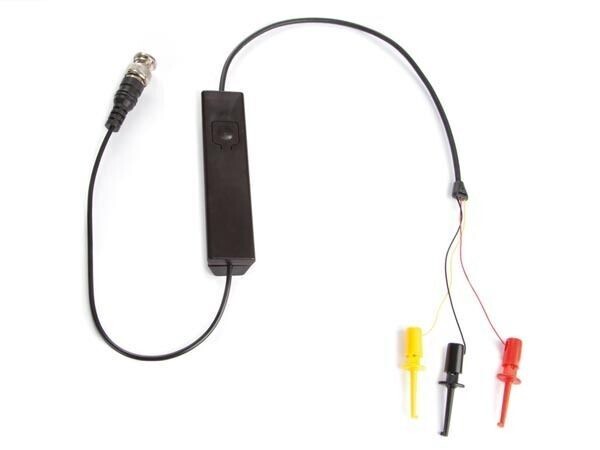

Velleman HPS141 COMPONENT TEST OPTION FOR HANDHELD OSCILLOSCOPE - HPS140mk2

Connect this easy to use component tester to your handheld oscilloscope (HPS140MK2) and receive all useful information about resistors, transistors, diodes and more, including their pin out identification.

Features
a single button test
a test indicator
auto shutdown
shows pin layout
handheld oscillopscope (HPS140mk2) needed (not included)
only compatible with the HPS140mk2 (not included)
battery included
component analyzer with automatic pin out identification
Specifications
dimensions: 23 x 96 x 15mm (W x L x H) (without cables)
supported components: SCR, JFET, E-IGBT, D-IGBT, E-MOS, D-MOS, resistor, coil, capacitor, diode, transistor
resistance resolution: 0.1Ohm (max 50 Ohm)
capacitance range: 28pF to 100.000µF
inductance range: 0.01mH to 20H
standby current: 20nA
power supply: 12V battery GP23A (included)
test current: approx. 20mA
test speed: 2 seconds
