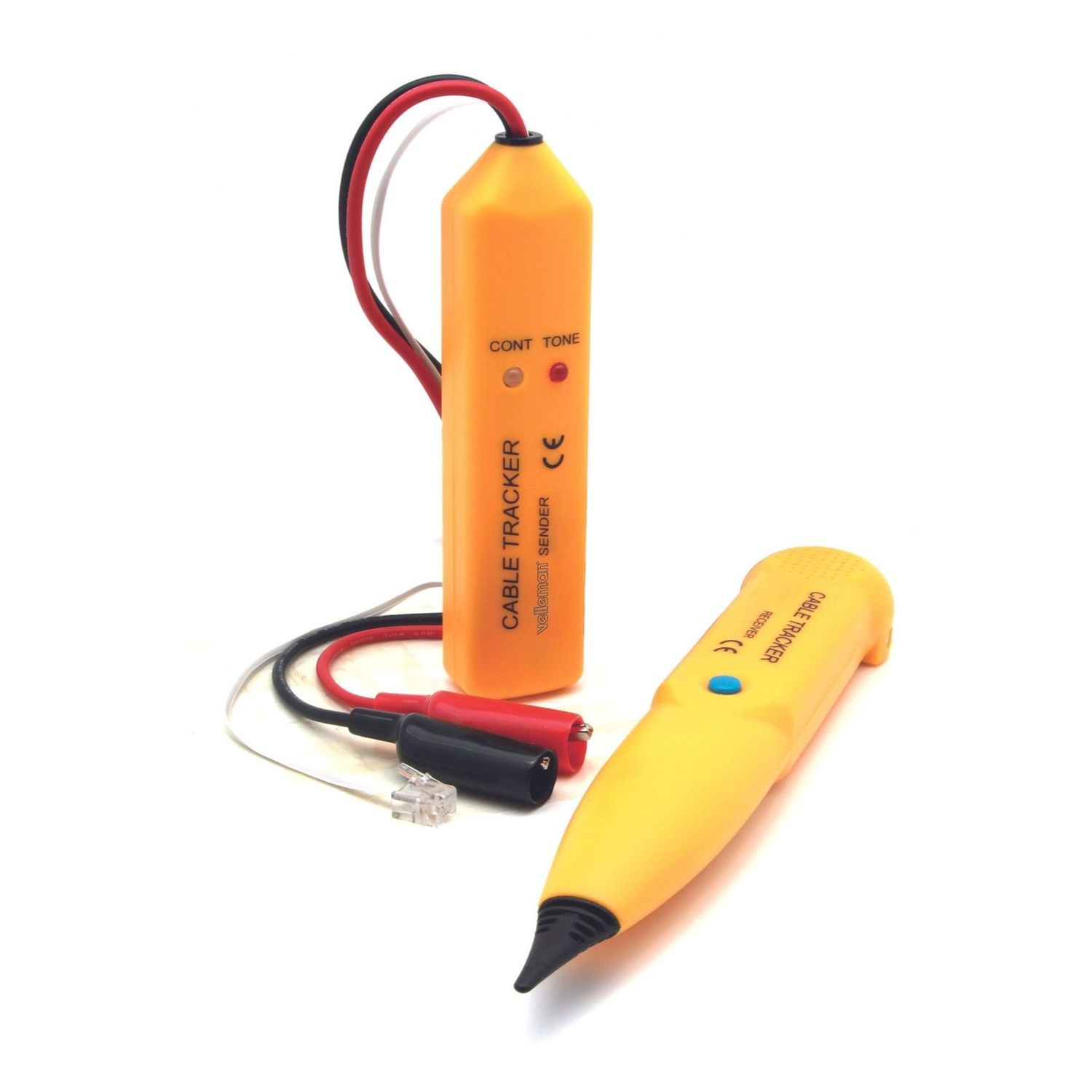

Cable tester and wire tracer with tone generator

Store / Tools & Equipment / Test Equipment
€40.64
Sold out
Product Details

Cable tester and wire tracer with tone generator, wire break detector for robotic mower boundary cables, network, telephone and electrical wires, for RJ11, RJ12, RJ45, LAN cables, cable locator

Suitable for locating broken wire from Robotic Lawnmower

Product description

Save time and frustration when detecting wire breaks with our cable tester. With this handy tool, you can quickly and easily identify short circuits, open circuits, broken wires, current leaks, and even locate wires. How does it work? It's simple! Connect the tone generator to the cable and use the probe to locate the cable break. Once the cable break is found, the sound signal stops so you can quickly repair it without having to open the wire's insulation layer. This cable tester can be used to test various types of cables, including:

  • Telephone cables (RJ45, RJ12)
  • Network cables
  • General electrical wiring
  • Audio and video cables
  • Perimeter wires for robot lawnmowers
+ Time-saving: Fast and easy cable break detection. + Efficient: Simple operation for quick detection and repair. + Versatile: Suitable for various types of cables, including telephone cables (RJ45, RJ12), electrical wiring, audio and video cables, and perimeter wire for robotic mowers. + Reliable: Accurate and reliable cable break detection. + Simple: Connect the tone generator to the cable and use the measurement probe to detect cable breakage. Once the cable break is found, the beep stops so you can repair it quickly, without opening the wire cover.

Specifications

Product basic info
Instruction manual languages Dutch, English, French, German, Spanish
Primary colours Yellow
Additional colours Black
Weight unit 260 g
Material ABS
Physical properties
Width probe 35 mm
Depth probe 25 mm
Depth tone generator 26 mm
Height probe 145 mm
Height tone generator 238 mm
Width tone generator 43 mm
Technical data
Output wave voltage peak to peak 3.5 V
Single audio frequency 1500 Hz
Maximum output volume 100 dB
Maximum reception sensitivity 30 mV
Output wave form Square
Dual audio frequency 1300-1700 Hz
Operational properties
Signal viewing modes Speaker
Audio output Yes
Audio connections
Audio output type Speaker
Power supply
Batteries included No
Battery required Yes
Number of batteries 2
Battery operated Yes
Input voltage rating VDC 18 V
Battery IEC size E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9-volt, 006P, MN1604)
Included
Carrying bag Yes
User Manual CLICK HERE

Dowloads CLICK HERE
