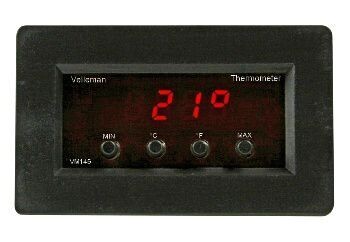

Velleman VM145 DIGITAL PANEL THERMOMETER WITH MIN/MAX READ-OUT

Features

non-volatile memory for minimum and maximum temperature

bright red LED read-out

pre-calibrated sensor

digital communication between sensor and display unit avoids measurement errors

Specifications

wide power supply range:

9 ... 24VDC

7 ... 17VAC

power and temperature sensor connection via board-to-wire connector (20cm supplied)

temperature range: -30°C (-22°F) to + 120°C (248°F)

accuracy:

room temperature range: ± 1°C (2°F)

full range : ± 2°C ( +/- 4°F )

distance between sensor and display unit: tested up to 10m (33ft)

current consumption: 40mA maximum

dimensions:

panel module: 67 x 40.5 mm / 2.6 x 1.6"

cut-out : 54 x 37 mm / 2.1 x 1.5"

sensor: 51 x 11 x 3 mm / 2 x 0.4 x 0.11"

mounting depth: 42mm / 1.65"

weight: 40g
