Digital multimeter AC/DC
+7
+6
+5
+4
+3
+2

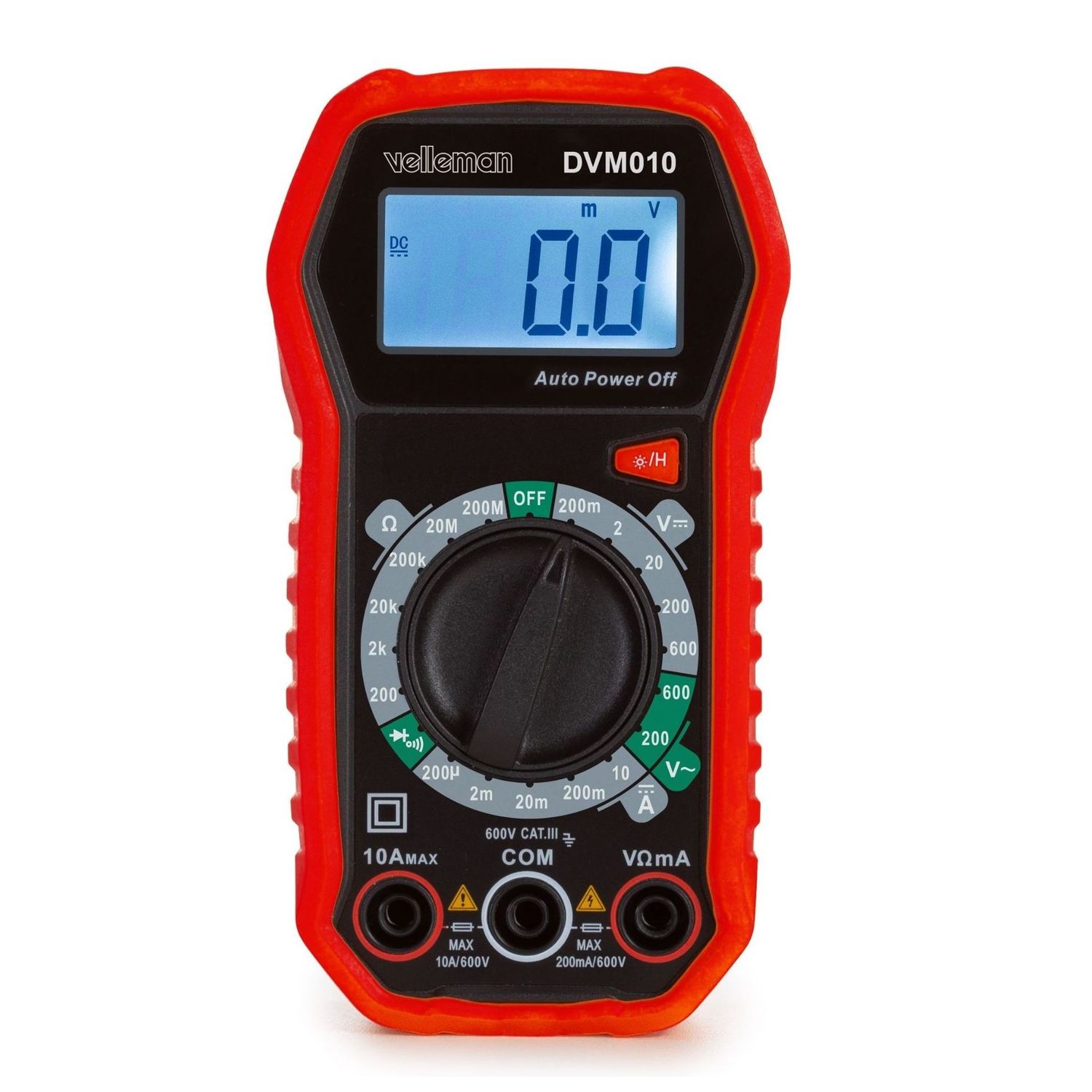

Digital multimeter AC/DC

Store / Tools & Equipment / Test Equipment
€16.00
In stock: 1 available
Product Details

Digital multimeter, suitable for measuring AC/DC current, AC/DC voltage, resistance, transistor, diodes and continuity, including test leads

Product description

This digital multimeter is the perfect tool for DIYers and hobbyists. Thanks to its compact and robust design, you can take it anywhere. The very complete multimeter is suitable for measuring voltage, current and resistance using the supplied test leads (100 cm). The meter has a 2000 count backlit display, making measurements easy to read. With a safety rating of CAT III - 600 V and a current measurement of 200 mA and 10 A at 600 V, you can be sure of safe use.

+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements. + High accuracy with 2000 counts: This multimeter offers high accuracy in measuring various electrical values such as voltage (volts) and resistance (ohms). + Safe electrical measurements: The instrument complies with safety category CAT III 600 V for increased safety. + Manual range setting. + Automatic switch-off: The multimeter is automatically switched off when not in use. - Backlight: A large backlit display ensures good readability even in poor lighting conditions.

Specifications

Product basic info
Primary colours Red
Additional colours Grey
Depth unit 47 mm
Height unit 133 mm
Width unit 71 mm
Weight unit 190 g
Material ABS
Physical properties
Cable length 1 m
Display height 21 mm
Display width 40 mm
Display type LCD
Backlight
Maximum digits display 2000
Electrical data
AC current basic accuracy:±(1.5%+3)
AC voltage basic accuracy:±(0.8%+5)
Audible continuity measurement
Automatic polarity indication
DC current basic accuracy:±(1.2%+5)
DC voltage basic accuracy:±(0.8%+5)
Diode test
Continuity test
Fuse type F 0.20 A / 600 V, 5 x 20 mm, F 10 A / 600 V, 5 x 20 mm
Out of range indication
Transistor test
True rms
AC voltage measurements 200 V, 600 V
DC current measurements 10 A, 2 mA, 20 mA, 200 µA, 200 mA
DC voltage measurements 2 V, 20 V, 200 mV, 200 V, 600 V
Resistance measurements 2 kOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 MOhm, 200 Ohm
Resistance specifications basic accurancy:±(1.2%+5)
Technical data
Safety rating Cat III / 600 V
Automatic power-off function
Data-hold function
Relative value measurement
Remote voltage test
Environmental data
IP rating IPx0
Usage location Indoor only
Operational properties
Range setting Manual
Power supply
Batteries included
Number of batteries 2
Low battery indicator
Battery IEC size AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
Included
with LED light
Set contents
`

USER MANUAL
