Digital multimeter, LCD display
+5
+4
+3
+2

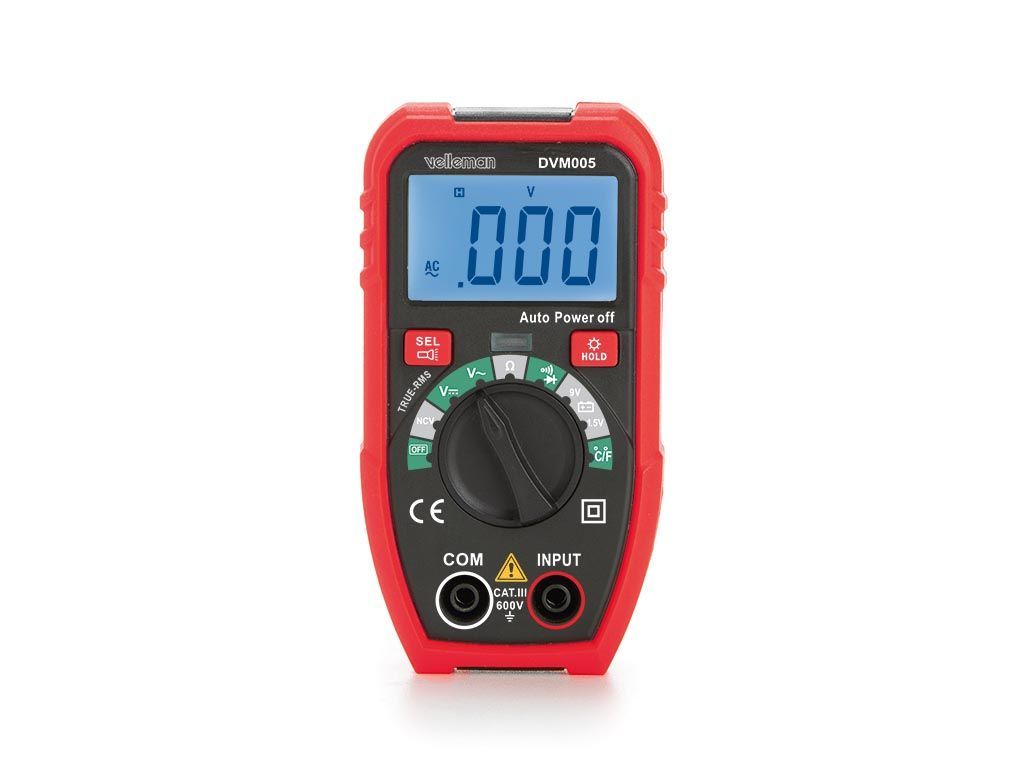

Digital multimeter, LCD display

Store / Tools & Equipment / Test Equipment
€18.28
In stock: 1 available
Product Details

Digital multimeter, LCD display, CAT III/600 V, suitable for measuring AC/DC voltage, resistance, temperature, transistors, diodes, and continuity, battery test, flashlight, NCV function, test leads

Product description

This digital multimeter is the perfect tool for occasional users (DIYers) who need a reliable instrument for essential measurements. Thanks to its compact and robust design, you can take it anywhere.
The multimeter is suitable for measuring voltage, temperature, and resistance with the provided test leads (100 cm). The device features a clear display with backlighting and an LED flashlight, making the measurements easy to read. With a safety rating of CAT III - 600 V and an NCV function, you are ensured safe use.

+ Integrated data hold function: With this feature, you can easily hold and read measurements even after disconnecting the test leads. This ensures accurate and reliable measurements. + Non-contact voltage detection: Thanks to the NCV function, you can safely detect the presence of voltage from a distance, without making direct contact with the cables. + Automatic shutdown: The multimeter automatically shuts off when not in use. + Temperature measurement and battery test function: With the included temperature probes, you can easily perform accurate temperature tests within a measuring range of -20°C to 1000°C. The multimeter also offers the ability to check the condition of various battery types. + Automatic polarity indication: Thanks to the automatic polarity indication, you don't have to worry about incorrectly connecting the test leads. This saves time and minimizes errors when conducting measurements.

Specifications

Product basic info
Instruction manual languages Dutch, English, French, German, Polish, Portuguese, Spanish
Primary colours Grey, Red
Additional colours Blue
Depth unit 30 mm
Height unit 119 mm
Width unit 65 mm
Weight unit 130 g
Material ABS
Physical properties
Cable length 0.85 m
Display height 26 mm
Display width 43 mm
Display type LCD
Backlight Yes
Maximum digits display 4
Electrical data
Lamp type Led
AC voltage basic accuracy : ±(1.0%+10)
Audible continuity measurement Yes
Automatic polarity indication Yes
Diode test Yes
Continuity test Yes
Out of range indication Yes
Transistor test No
True rms Yes
AC voltage measurements 2 V, 20 mV, 20 V, 200 mV, 200 V, 600 V
Battery test measurements 1.5 V, 9 V
DC voltage measurements 2 V, 20 mV, 20 V, 200 mV, 200 V, 600 V
Resistance measurements 2 kOhm, 2 MOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 Ohm
Resistance specifications basic accuracy : ±(1.0%+5)
Battery test Yes
Technical data
Auto shut-off Yes
Safety rating Cat III / 600 V
Voltage tester type AC / DC
Automatic power-off function Yes
Data-hold function Yes
Relative value measurement No
Remote voltage test Yes
Environmental data
IP rating IPx0
Usage location Indoor only
Operational properties
Measuring temperature range °C -20-1000 °C
Measuring temperature range °F -4-1832 °F
Number ranges 7
Range setting Automatic
Power supply
Batteries included Yes
Number of batteries 2
Low battery indicator Yes
Battery composition Alkaline
Battery IEC size AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
Included
with LED light Yes
User Manual CLICK HERE
