Digital multimeter, data hold, non-contact voltage detection

Store / Tools & Equipment / Test Equipment
€54.43
In stock: 1 available
Product Details

DVM030

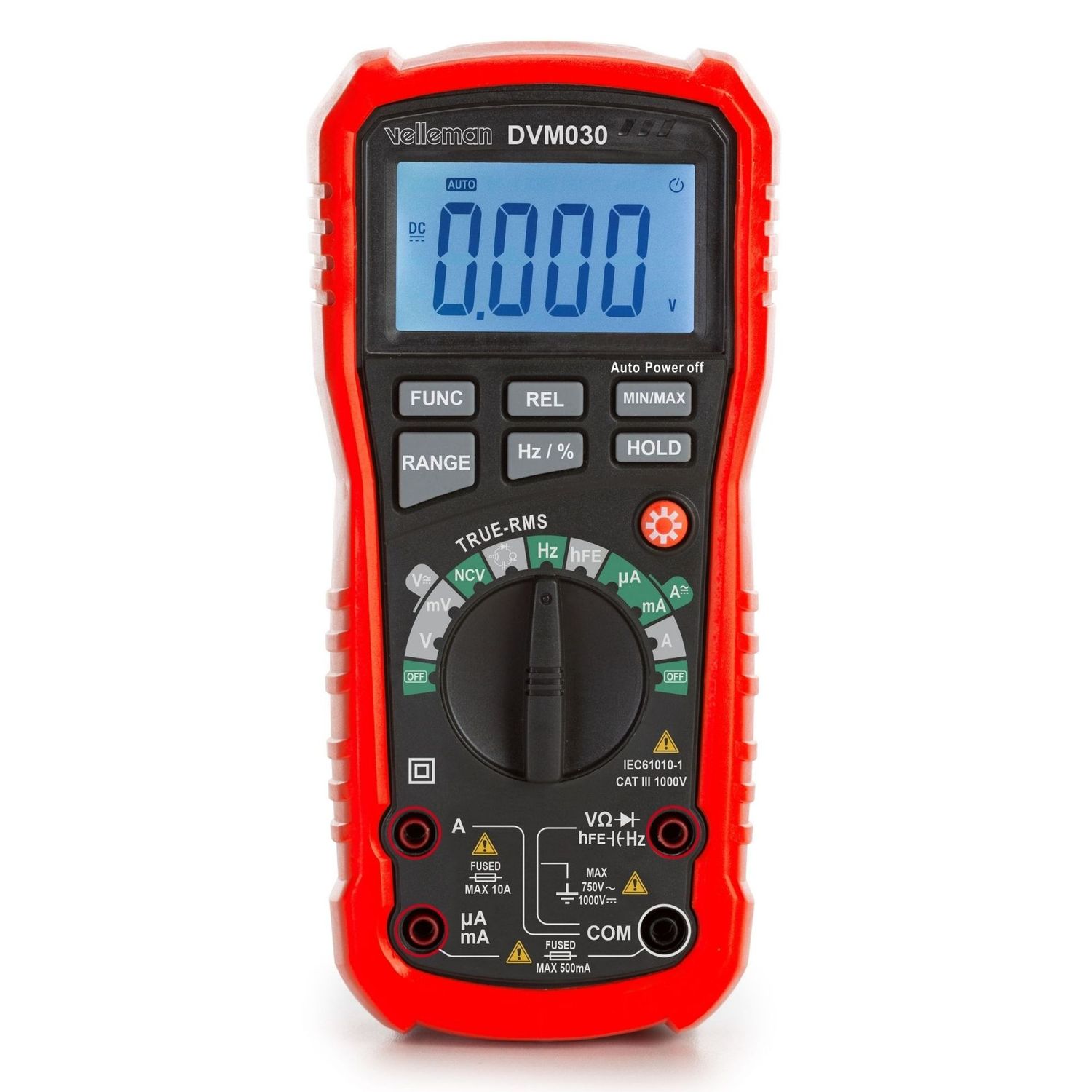

Digital multimeter, data hold, non-contact voltage detection, with MIN/MAX/REL function, suitable for measuring AC/DC current, AC/DC voltage, resistance, frequency, capacitance, diodes and continuity, including test leads

Product description

This digital multimeter is the perfect tool for electricians, do-it-yourselfers and hobbyists. Thanks to its compact and robust design, you can take it anywhere. The very complete multimeter is suitable for measuring voltage, current and resistance using the supplied test leads (100 cm). The meter has a True RMS function, which ensures accurate voltage and current measurements. Furthermore, the meter features a MIN/MAX and REL function. The meter has a backlit 4000 count display, making readings easy to read, and a torch for dark rooms. With a safety category of CAT III - 1000 V and a current measurement of 500 mA and 10 A at 1000 V, you can be sure of safe use.

+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements. + Non-contact voltage detection: The NCV function allows you to detect the presence of voltage at a safe distance, without making direct contact with the cables. + REL function: The initial value at the start of the measurement is stored as the reference value (= zero). The difference between the subsequent readings and the reference value is shown on the display. + Min/Max function: The meter records and then displays the minimum and maximum values. + Automatic and manual range setting. - Backlight: A large backlit display ensures good readability even in poor lighting conditions.

Specifications

Product basic info
Primary colours Red
Additional colours Grey
Depth unit 60 mm
Height unit 200 mm
Width unit 92 mm
Weight unit 320 g
Material ABS
Physical properties
Cable length 1 m
Display height 32 mm
Display width 56 mm
Display type LCD
Backlight Y
Maximum digits display 4000
Electrical data
AC current basic accuracy:±(1.5%+5)
AC voltage basic accuracy:±(0.8%+5)
Audible continuity measurement Y
Automatic polarity indication Y
Capacity basic accuracy:±(4.0%+15)
DC current basic accuracy:±(0.8%+5)
DC voltage basic accuracy: ±(0.5%+5)
Diode test Y
Frequency basic accuracy:±(0.5%+2)
Continuity test Y
Fuse type F 0.50 A / 1000 V, 6,35 x 32 mm, F 10 A / 1000 V, 6.35 x 32 mm
Out of range indication Y
Transistor test Y
True rms Y
AC current measurements 0.1 µA - 10 A
AC voltage measurements 0.01 mV - 750 V
Capacity measurements 10 pF - 100 mF
DC current measurements 0.1 µA - 10 A
DC voltage measurements 0.01 mv - 1000 V
Frequency measurements 10 Hz - 10 MHz
Resistance measurements 0.1 Ohm - 40 MOhm
Resistance specifications basic accuracy:±(0.8%+5)
Technical data
Safety rating Cat III / 1000 V
Automatic power-off function Y
Data-hold function Y
Relative value measurement Y
Remote voltage test Y
Environmental data
IP rating IPx0
Usage location Indoor only
Operational properties
Range setting Automatic
Power supply
Batteries included Y
Number of batteries 1
Low battery indicator Y
Battery composition Alkaline
Battery IEC size 9 V
Included
with LED light
Set contents
USER MANUAL
