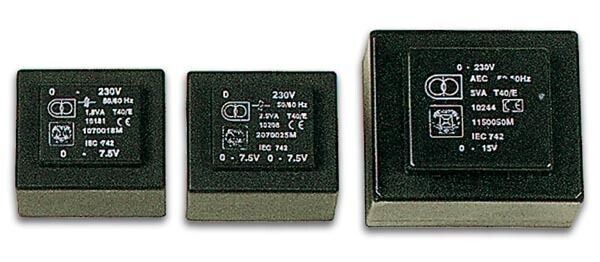

Velleman 2090120M ENCAPSULATED TRANSFORMER 12VA 2 x 9V / 2 x 0.670A

Specifications

voltage: 2 x 9V

current: 2 x 0.670A

isolation resistance: >5Mohm / 500Vdc

electric strength: >5kV min.

designed for an ambient temperature of max. 40°C

thermal class E, materials to max. 120°

short-circuit protection up to 3VA

possibility of thermal fuse protection

max. temperature for class E: 95°C

primary tension: 230V ± 10%, 50/60Hz

secondary voltage tolerance: +7% - 3% at 230V and max. load

perfect solderability for wave bath

CE labelled

creepage distances and clearances according to IEC742

picture:

1*: bobbin with two chambers

2*: input winding

3*: encapsulation in epoxy resin

4*: output winding

5*: connection pins

6*: polyamide cover

7*: magnetic core

8*: safety transformer

9*: inherently short-circuit proof

10*: primary voltage

11*: nominal power / temperature

12*: manufacturer's reference

13*: ordercode

14*: meets :

15*: nominal secondary voltages
