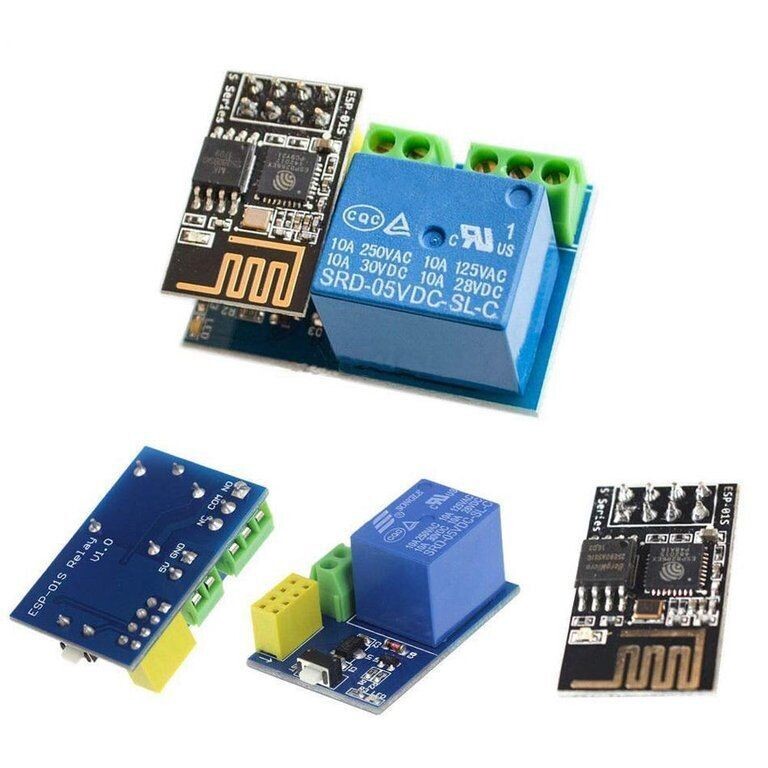

ESP8266 5V Wifi Relay Module TOI APP Controled For Smart Home Automation Board

Plus a ESP-01S Module, the intelligent relay module based on ESP-01S WIFI module design, can be used for DIY their own smart switch, you can remotely through the mobile APP control, providing APP and LUA source. Easy to use, easy to use.
Features:
Module operating voltage: DC 5V
Relay load capacity: 10A 250VAC 10A 125VAC 10A 30VDC 10A 28VDC
Application:
1. Wiring: Connect the relay terminals to the equipment to be controlled, such as lights and fans.
2. burn program: use the site to provide the downloader, a key to download.
3. mobile phone connected to ESP-01S issued a hot spot, open the phone APP: ESP8266 Controller, set the IP address: the default 192.168.1.1 Password: 12345678
ESP8266 ESP-01S 5V Wifi Relay Module TOI APP Controled For Smart Home

RELAY

Description:
This relay is based on ESP-01S WIFI module.
It is designed for smart home, Internet of thing and other DIY project.
With this smart relay, you will easy to DIY your smart switch to control any device by your phone anywhere.
Product parameters:
Product size: 37x25mm
Operating voltage: DC 5V
Communication: WIFI (ESP8266 module)
Transmission distance: Max.400m (open environment, mobile phone equipped with WIFI module)
Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times.

ESP8266 ESP-01S

Wireless Standard:802.11b/g/n
Frequency Range:2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface:UART/HSPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Operating Voltage:3.0-3.6V(We recommended 3.3V)
Operating Current:Average 80mA
Operating Temperature:-40~125℃
Wireless Network Mode:station/softAP/SoftAP+station
Safety Mode:WPA/WPA2
Encryption Type:WEP/TKIP/AES
Network Protocol:IPV4,TCP/UDP/HTTP/FTP
