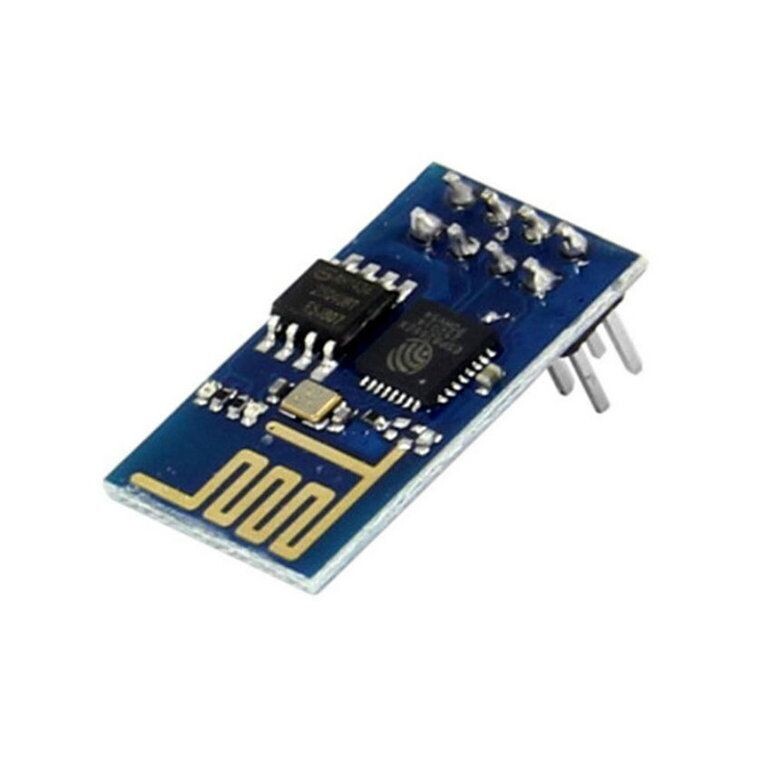

ESP8266 ESP-01 WIFI Wireless Transceiver Send Receive LWIP AP+STA

Description:

High quality & low price
LWIP agreement
Support 3 modes: AP, STA, AP+STA
Perfect and simple AT commands

Specifications:

- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- Integrated low power 32-bit CPU could be used as application processor
- SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)

Warnings:

1. This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V Arduino will
destroy this module. You must use a logic level converter, or a 3.3V Arduino
2. The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module. You must provide a separate,
higher 3.3V supply(about 300mA or better)
3. The ESP8225 module is very new on the market and support and documentation for it is currently very limited.
