Velleman VM140 EXTENDED USB INTERFACE BOARD

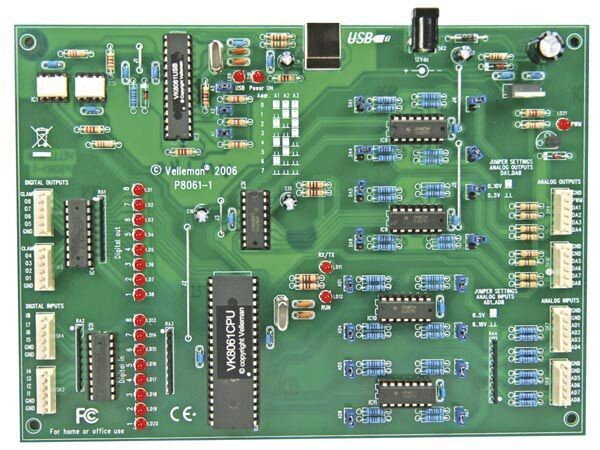

This computer interface board has a total of 33 inputs / outputs, including analogue / digital and a PWM output.

The connection to the computer via the USB port is galvanically-optically isolated, so that damage to the computer is impossible thus providing a high level of secure implementation.

All communication routines are contained in a Dynamic Link Library (DLL).

You may write custom Windows* Applications in Borland Delphi, Borland C++ Builder, Microsoft Visual Basic, Microsoft VC or most other 32-bit Windows application development tool that supports calls to a DLL.

*Windows XP is a registered trademark of Microsoft Corporation.

Features

8 analogue 10 bit resolution inputs: 0…5 or 10VDC / 20k ohms

8 analogue 8 bit resolution outputs: 0…5V or 10VDC / 47 ohms

8 digital inputs: open collector compatible (connection to GND=0) with on-board LED indication

8 digital open collector outputs (max. 50V/100mA) with on-board LED indication

one 10 bit PWM output: 0 to 100% open collector output (max 100mA / 40V) with on-board LED indication

USB port: USB 1.1 & 2.0 compatible

Specifications

power consumption through USB port: approx. 60mA

up to 8 cards can be connected to PC

power supply through adapter: 12VDC / 300mA (PS1205)

PWM frequency: 15.6kHz

command execution time: between 21 and 48ms

PCB dimensions: 195 x 142 x 20mm / 7.68 x 5.59 x 0.79"

minimum system requirements:

Pentium class CPU or higher with free USB port (1.1 or higher)

Microsoft Windows 2000 or Windows XP

CD-ROM player and mouse

Data Sheet
