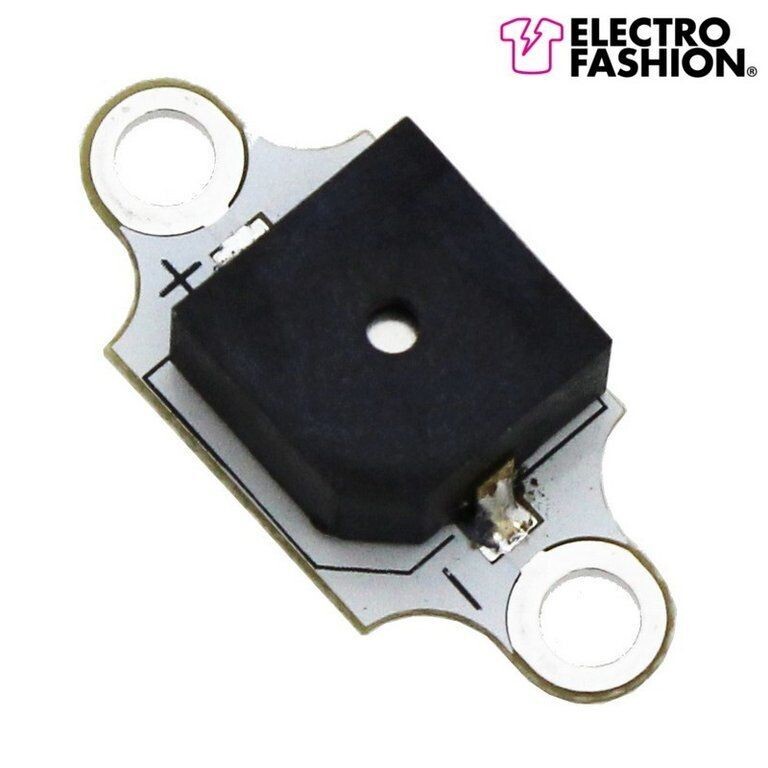

Kitronik 2745 Electro-Fashion, Sewable Buzzer

Product Description
This Sewable Electro-Fashion Buzzer is ideal for adding sound or an alarm to any e-textiles project. This buzzer has a built-in driver circuit that emits a single tone when the buzzer ic is connected to a 3V power supply. The buzzer and has two connections to which the conductive thread can be connected. These are clearly marked with '+' and '-' to indicate which is the positive and which is the negative connection.

The PCBs are double sided making the conductive thread connection very reliable.

Note:

This buzzer is compatible with the Electro-Fashion: Igloo, PICAXE wearable module.

Features:

Runs on a 3V circuit.
Loud buzzer sound when circuit is active.
Sewable, double-sided PCB with clearly marked '+' and '-' terminals.
Contents:

1 x Electro-Fashion, Sewable Buzzer.
Dimensions:

PCB Length: 18mm.
PCB Width: 8mm.
Height: 6mm.

Data Sheet
