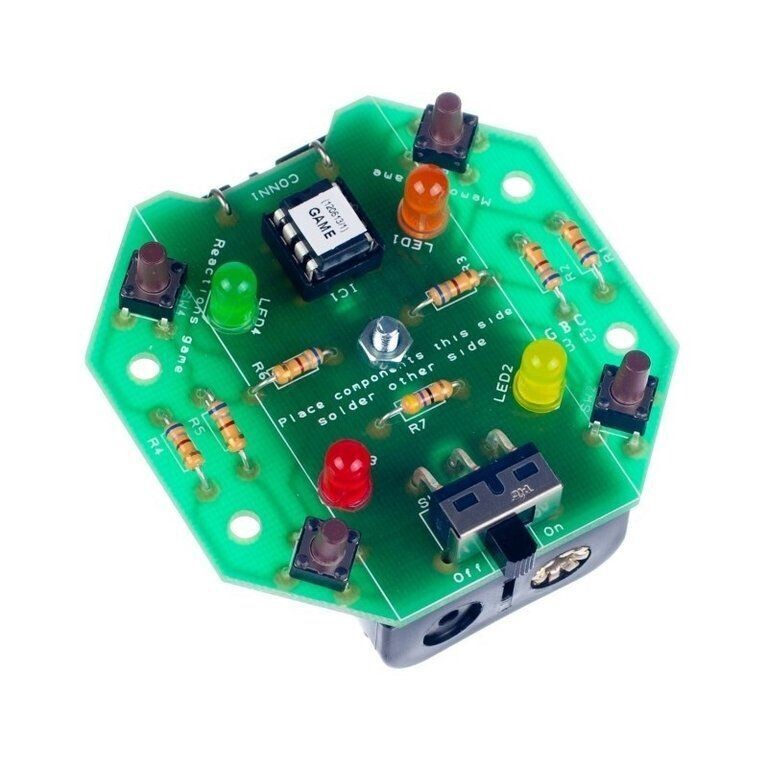

This kit has four buttons and LEDs to make up a game, which can be used as both a memory game and a reactions game. A PIC micro-controller, pre-programmed with special software controls the game.

The on / off switch and battery pack mount directly onto the board allowing it to be used as built or alternatively it can be housed into an enclosure of your own design.

Features:

2 Games in 1 kit.

Compact PCB design.

Contents:

1 x 2x AA PCB Mount.

6 x 680R Resistor.

1 x 47R Resistor.

1 x Red 5mm Diffused LED - 275mCd.

1 x Green 5mm Diffused LED - 35mCd.

1 x Yellow 5mm Diffused LED - 125mCd.

1 x Orange 5mm Diffused LED - 275mCd.

4 x 6mm PCB Mount Tactile Switch, 9.5mm height.

1 x IC Socket 8 Pin.

1 x PCB Mount Slide Switch.

1 x Pan Head M3 x10mm Machine Screw.

1 x M3 Hex Full Width Nut, Zinc.

1 x Electronic Game Kit PCB.

1 x Pre-Programmed IC.

Dimensions:

Length: 58.5mm.

Width: 58.5mm.

Requires:

2 x AA Batteries.

Soldering Iron.

Solder.

Wire Cutters.

Screwdriver.

Physical characteristics:

PCB Length: 58.5mm.

PCB Width: 58.5mm.

PCB Component Count: 18.

Electrical characteristics:

Voltage Nominal: 3V.

Voltage Range: 2V - 5V.

Standby Current: 9.5mA.

Current Max at Nominal Voltage: 12mA.

Data Sheet
