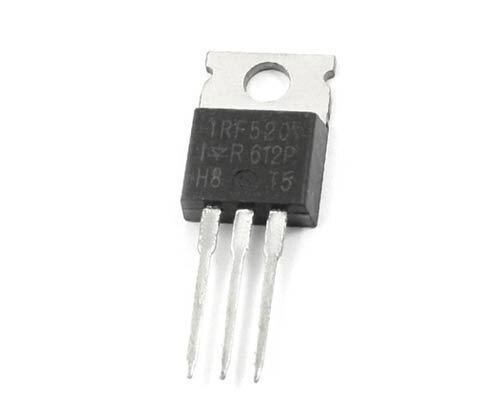

IRF520N IRF520 Power MOSFET N-Channel TO-220

N - CHANNEL ENHANCEMENT MODE
POWER MOS TRANSISTORS

■ TYPICAL RDS(on) = 0.23 Ω
■ AVALANCHE RUGGED TECHNOLOGY
■ 100% AVALANCHE TESTED
■ REPETITIVE AVALANCHE DATA AT 100o
C
■ LOW GATE CHARGE
■ HIGH CURRENT CAPABILITY
■ 175o
C OPERATING TEMPERATURE
APPLICATIONS
■ HIGH CURRENT, HIGH SPEED SWITCHING
■ SOLENOID AND RELAY DRIVERS
■ REGULATORS
■ DC-DC & DC-AC CONVERTERS
■ MOTOR CONTROL, AUDIO AMPLIFIERS
■ AUTOMOTIVE ENVIRONMENT (INJECTION,
ABS, AIR-BAG, LAMPDRIVERS, Etc.)

Data Sheet
