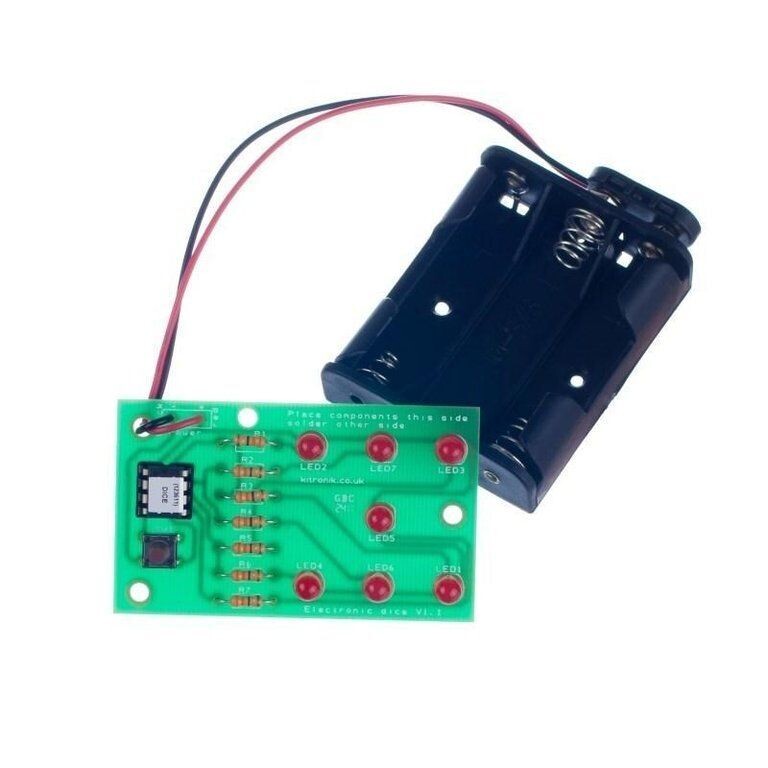

Kitronik Dice Project Kit

Description

This kit has seven LEDs that are used to display a random dice number every time the ‘start’ button is pressed. A PIC micro-controller, pre-programmed with special software controls the dice.

The ‘start’ switch mounts directly onto the board allowing it to be used as built or the dice can be housed into an enclosure.

Features:

Random dice generator.

Compact PCB design.

Contents:

1 x PP3 Battery Clip Lead (Heavy Duty).

1 x 3xAA Battery Cage with Clip.

7 x Red 5mm Diffused LED - 275mCd.

7 x 330R Resistors.

1 x 6mm PCB Mount Tactile Switch.

1 x IC Socket 8 Pin.

1 x Electronic Dice Kit PCB.

1 x Pre-Programmed IC.

Dimensions:

Length: 66mm.

Width: 39mm.

Requires:

3 x AA Batteries.

Soldering Iron.

Solder.

Wire Cutters.

Resources:
Click here to download the essential information. pdf_icon.gif Click here to download the full teaching resources. pdf_icon.gif
