Kitronik Programmable Music Box Kit

Description

The music box has a micro switch used to start the music when the box lid is opened, or can be triggered by a passing coin in to a money box. The kit can be used with your choice of 8 pin PIC processor and flowchart software. A simple programming task allows the student to play a tune of their choice when the switch it activated. The kit is compatible with most educational PICs & software. Programming is via a 3.5mm jack interface.

Features:

This board is compatible with most education Flowcharting Systems.
A simple programming task allows the student to play a tune of their choice when the switch it activated.

Contents:
1 x 3.5mm PCB Mount Jack Socket.
1 x 10KΩ Resistor.
2 x 22KΩ Resistors.
1 x 8 Pin IC Holder.
1 x Micro Switch With Medium Lever.
1 x Piezo Buzzer (no Drive).
1 x PP3 Clip Lead.
1 x 3AA Battery Cage.
0.5m Connecting Wire

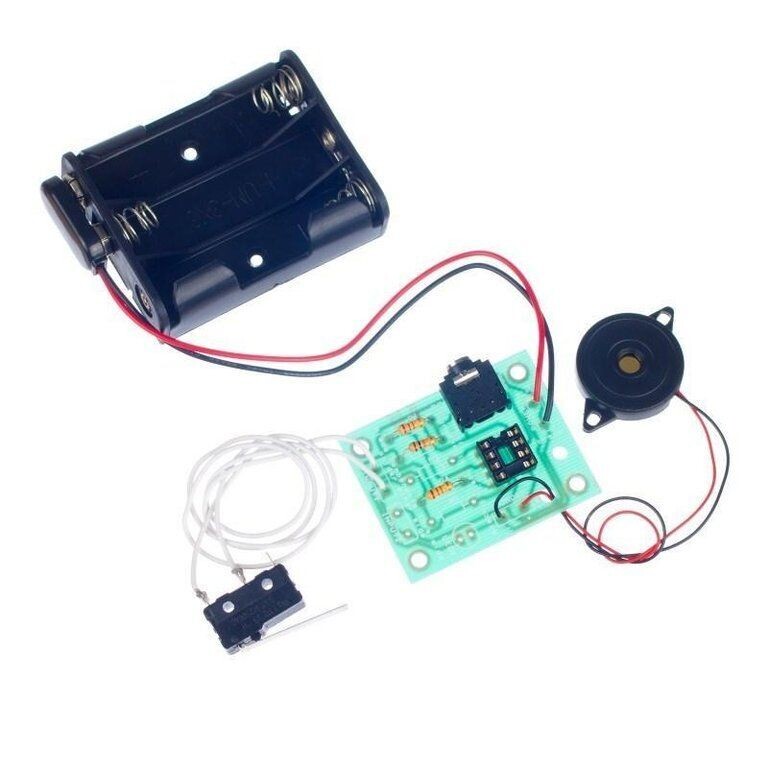

1 x music box PCB

Dimensions:
PCB Length: 46mm.
PCB Width: 36mm.

Requires:
Your choice of processor (PICAXE or GENIE). CLICK HERE or CLICK HERE
You will also need either the PICAXE or GENIE programming software and lead. CLICK HERE or CLICK HERE
3 x AA Batteries.
Soldering Iron.
Solder.
Wire Cutters.
Wire Strippers.

Resources:

Build Instructions.pdf_icon.gif

Teaching Resources.pdf_icon.gif

Note:
This kit requires soldering.
Processor not included. CLICK HERE for PICAXE IC
You will also need either the PICAXE or GENIE programming software and lead.
