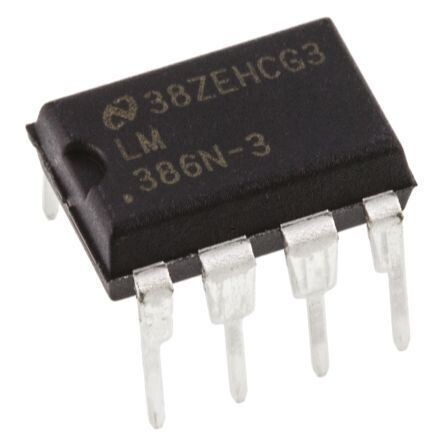

Texas Instruments LM386N-3/NOPB Speaker Amplifier, Class-AB Mono, 8-Pin MDIP

Product Details
Audio Power Amplifiers, Single, Texas Instruments
A range of single channel power amplifier ICs from Texas Instruments with power outputs from less than 1 watt to over 50 watts. These highly integrated devices incorporate many advanced features including thermal overload, short-circuit and safe operating area protection, muting facilities and wide operating voltage range.
Audio Amplifiers, Texas Instruments

Specifications

Amplifier Type Class-AB
Output Type 1 Channel Mono
Application Speaker
Maximum Power 0.7 W @ 8 Ω
Mounting Type Through Hole
Typical Single Supply Voltage 5 V, 9 V
Power Supply Type Single
Package Type MDIP
Pin Count 8
Input Signal Type Single Ended
Output Signal Type Single Ended
Width 6.35mm
Minimum Operating Temperature 0 °C
Dimensions 9.27 x 6.35 x 3.3mm
Length 9.27mm
Height 3.3mm
Maximum Operating Temperature +70 °C
