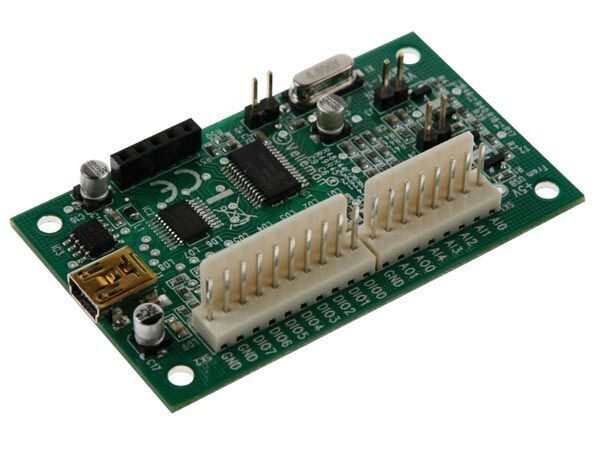

Velleman VM167 MINI USB INTERFACE BOARD

Test software and examples downloadable via www.velleman.eu !

Features

very Small, universal USB powered & controlled I/O board !

add USB interface to existing equipment

15 inputs / outputs, including analogue inputs / digital inputs/outputs and PWM outputs

the number of inputs/outputs can be further expanded by connecting two cards to the PC's USB connectors

all communication routines are contained in a Dynamic Link Library (DLL)

Specifications

5 x analogue 10 bit resolution inputs: 0…5V / (30K)

8 x digital 5V inputs/outputs with on-board LED indication: Input/output mode is selectable in groups of 4 terminals

1 x 32 bit pulse counter up to 1MHz input frequency

2 x 8 bit 5V PWM outputs: 0 to 100%

on-board LED indication for I/O and PWM outputs

output current, PWM: 10mA / Digital outputs: 6mA

up to 2 cards can be connected to one PC

USB port: USB 1.1 & 2.0 compatible

DLL supports Windows XP, Windows Vista and Windows 7*

PWM frequency selection: 2930Hz,11.7kHz or 46.9kHz

command execution time, read:

read: 4ms

write: 1ms

power consumption through USB port: approx. 50mA

dimensions: 68 x 40 mm / 2.7 x 1.6"

Extras

you may write custom Windows* Applications in Microsoft Visual Basic, Microsoft VC, Borland Delphi, Borland C++ Builder or most other 32-bit Windows application development tool that supports calls to a DLL

*Microsoft Windows XP, Windows Vista and Windows 7 are registered trademarks of Microsoft Corporation

Data Sheet
