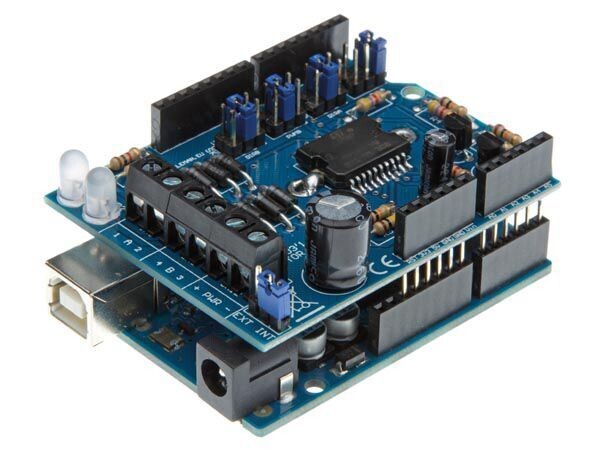

MOTOR & POWER SHIELD FOR ARDUINO®

Product description

Power shield that can drive: relays, solenoids, DC and stepper motors.

Also available in kit version KA03.

Features
2 channels
choose between an external or internal (Vin) power supply
based on the dual full bridge driver L298P
downloadable sample sketch
stackable design: the shield can be stacked with other shields
large user community
requires 1 Arduino UNO™ (not included)
Specifications
2.5 A (max.) output current (each channel)
50 V (max.) external power supply input
used pins on an Arduino UNO™ board can be selected to accommodate for other stacked shields
dimensions: 75 x 55 x 30 mm / 2.95 x 2.16 x 1.18"

DOWNLOADS

Manual explaining how to use the module (english version)

Arduino sketch example Example sketch to load into your Arduino UNO. Demonstrates how to control the KA03 motor & power shield.
