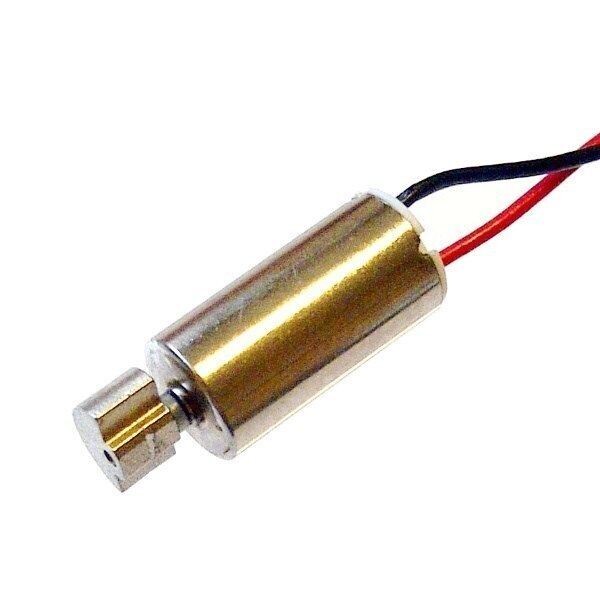

A Miniature 3V Vibration Motor measuring only 12mm long and 6mm in diameter. Pre-wired with red & black leads 90mm. Ideal for alerts and feedback functions.

Miniature vibration motor measuring only 12mm long x 6mm diameter. Coreless motor design, rated at 3V nominal.

These motors are often used for silent alert functions in mobile phones and are also used in applications within tools, robotics, control sticks and various alert functions in hand held equipment.

Pre-wired with red & black leads 90mm.

Dimensions: L: 12mm. Diameter: 6mm

Rated voltage: 3.0VDC

Operating range: 1.7-3.6VDC

Rated speed: 14000 RPM (2000 RPM)

Vibration amplitude: 1.5

Starting voltage: 1.7V max

Rated current: 75mA

Stall current: 140mA max

Weight: 1.85g
