Name: RESISTOR 50W 68E
SKU: RH68E0
Price: 4.78 EUR
Availability: InStock

RESISTOR 50W 68E

Store / Electronic Components / Resistors / Other Resistors

€3.89

In stock: 1 available

Product Details

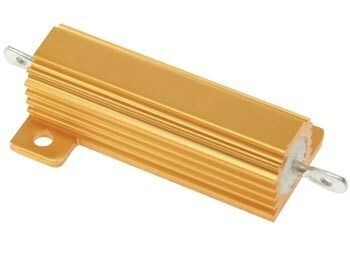

Velleman RH68E0 RESISTOR 50W 68E

These wirewound 50W resistors can handle continuous high power dissipation in a compact size. The resistor is moulded in an anodized aluminium heat sink for maximum heat dissipation.

Features

applications: instrumentation, TV's and audio systems, video recorders, computers, ...
Specifications

resistance: 68 ohm
power: 50W
resistance tolerance: ± 5%
temperature coefficient: ± 200ppm/°C
load: delta R/R < ±1% + 0.05 ohms (surface temperature rise 350°C max.)
short-time overload: delta R/R < ±2% + 0.05 ohms (100% rated power 5s)
insulation resistance: 500VDC / min. 100M ohms
dielectric withstanding voltage: 3000VAC, 60s
