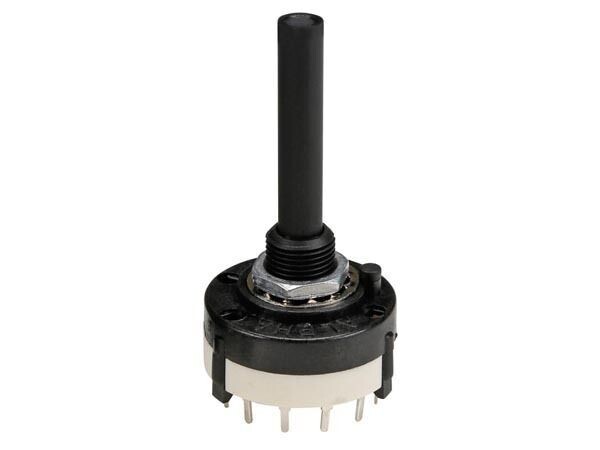

ROTARY SWITCH 1P / 12 POSITIONS PCB MOUNT

Store / Electronic Components / Switches / Rotary Switches
€3.00
In stock: 2 available
Product Details

ROTARY SWITCH 1P / 12 POSITIONS PCB MOUNTING

Features
type: "C" = for PCB mounting
Specifications
contact ratings:
50 V (AC or DC)
0.3 A continuous
electrical life: min. 10 000 cycles at full load, 15 ~ 20 cycles/min
contact resistance: max. 50 mohm
dielectric strength: 500 Vrms at sea level
insulation resistance: min. 100 Mohm at 500 Vdc
torque: 0.5 ± 0.2 kgf/cm
operating temperature: -20 °C to +85 °C
stops: the stop can be placed in 12 different positions (= 30° indexing)
materials:
shaft: glass-filled nylon
cover: glass-filled nylon
base: glass-filled nylon
contacts: brass, silver-plated
terminals: brass, silver-plated
hardware nut: zinc, nickel-plated
lock washer: steel, zinc-plated
stop ring: brass, nickel-plated
Ø: 6 mm
