ROUND METAL PUSH BUTTON
+4
+3
+2

ROUND METAL PUSH BUTTON

Store / Electronic Components / Switches / Push Button Switches
€6.40
In stock: 2 available
Product Details

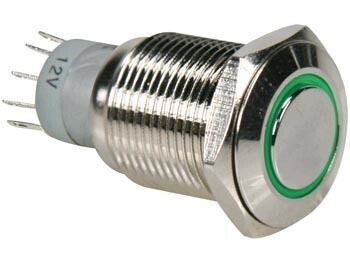

Velleman R1600G ROUND METAL PUSH BUTTON SPDT 1NO 1NC - GREEN RING

Features

illumination by means of 12V LED lighting

lifetime: > 40 000h

Specifications

DPST 1NO 1NC

colour: green

type: (on)-off

operating temperature: -20°C ~ +70°C

operating humidity: 45 ~ 85% RH

insulation resistance: > 1000M ohms

contact resistance: < 50M ohms

contact material: silver alloy

mechanical life: 1 000 000 cycles

electrical life: 50 000 cycles

dielectric strength:

between terminals of the same pole: 1000VAC

between terminal of different poles: 2000VAC

between terminal and lamp terminal: 1500VAC

body material: nickel-plated brass

IP rating: IP40/IP65

max. voltage:

24VDC / 1A

230VAC / 0.5A

mounting hole: Ø16mm
