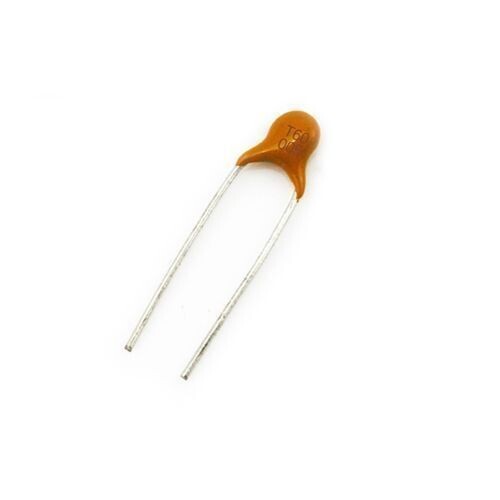

RXEF005XF005 60V/72V 0.05A 50MA PPTC Resettable Fuse

Product Details

PolySwitch™ RXE Series

TE PolySwitch™ RXE represents series of low hold current (down to 50mA) and high voltage rating (up to 72V) devices. Typically used in printers, satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, game machines, phones, fax machines, analog and digital line cards applications.

Current ratings from 50mA to 15A

Voltage ratings from 6V (computer and electronic applications) to 99V

Fast time-to-trip

Low resistance

RoHS compliant

Halogen free

PCB Wire Ended

Resettable fuses with radial leads that offer the following:

All are UL, CSA, TUV approved

Protection of electrical and electronic circuits against excessive currents

Rapid switch from low resistance state to very high resistance with electrical overload or short circuit

Quick and automatic reset and return to low resistance state when fault condition corrected and power removed

Features:

Automatically resets itself thousands of times

Maintenance free

Small size and no fuseholder required

Main applications:

Security systems

Power supplies and transformers

Power switching devices

Automotive and medical equipment

Instrumentation and control

Computers and peripherals

Audio visual and telecommunications

Specifications

Attribute Value

Lead Orientation Radial

Trip Current 100mA

Time to Trip 5s

Hold Current 0.05 A

Voltage Rating 60 V

Maximum Current 40 A

Minimum Resistance 7.3Ω

Maximum Resistance 20Ω

Power Dissipation 0.22W

Body Height 8.3mm

Body Length 8mm

Body Width 3mm

Wire Pitch 4.3 → 5.8mm

Wire Length 7.6mm

Wire Diameter 0.51mm
