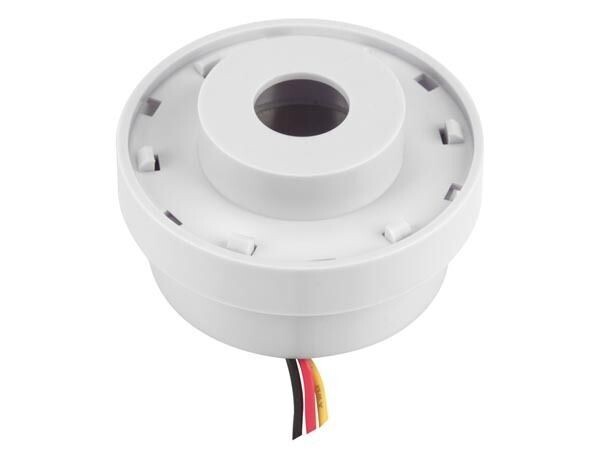

SINGLE / PULSE TONE BUZZER - LEAD TYPE

Product description
The Velleman electric piezo buzzers are specifically designed for applications requiring a highly reliable alarm or signal with a completely solid state and no electromechanical contact (oscillating circuit is built in). They are replacing the conventional electromagnetic buzzers because of their low power consumption, the extremely clear and penetrating sound, the absence of electrical noise, their compact design and their limited weight. A variety of models is available for various tone functions.
Features
clear penetrating tone
high sound pressure level
low power consumption
compatible with all traditional burglar alarms
Specifications
tone type: single / pulse
operating voltage: 3-18 VDC
rated voltage: 12 VDC
current consumption: 30 mA
osc. frequency: 2.9 kHz
sound level: 100 dB
connector type: leads
black wire: ground
red wire: single tone
yellow wire: pulse tone
body colour: white
weight: 22 g

Data Sheet
