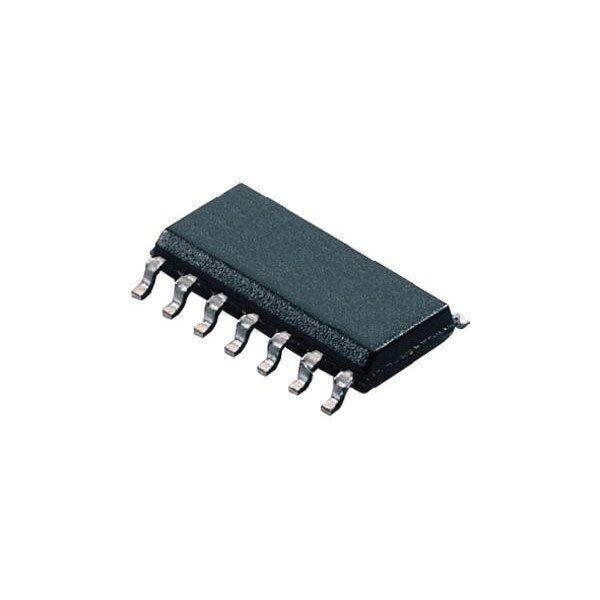

SMD 74HC14 7414 74HC14D Hex Inverter with Schmitt Trigger SOP-14

IC, 74HC CMOS, 74HC14, SOIC, 125NS

Logic Type: Inverter

Output Current: 5.2mA

No. of Inputs: 1

Supply Voltage Range: 2V to 6V

Logic Case Style: SOIC

No. of Pins: 14

Operating Temperature Range: -40°C to +125°C

SVHC: No SVHC (19-Dec-2011)

Base Number: 74

IC Generic Number: 74HC14

Logic Function Number: 7414

Logic IC Base Number: 7414

Logic IC Family: HC

Logic IC Function: Hex Inverter with Schmitt Trigger

No. of Gates: 6

Operating Temperature Max: 125°C

Operating Temperature Min: -40??C

Output Current Max: 5.2mA

Package / Case: SOIC

Supply Voltage: 5V

Supply Voltage Max: 6V

Supply Voltage Min: 2V

Termination Type: SMD
