Product description:

This steady hand game has a buzzer that sounds momentarily when the loop makes contact with the wire. It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.

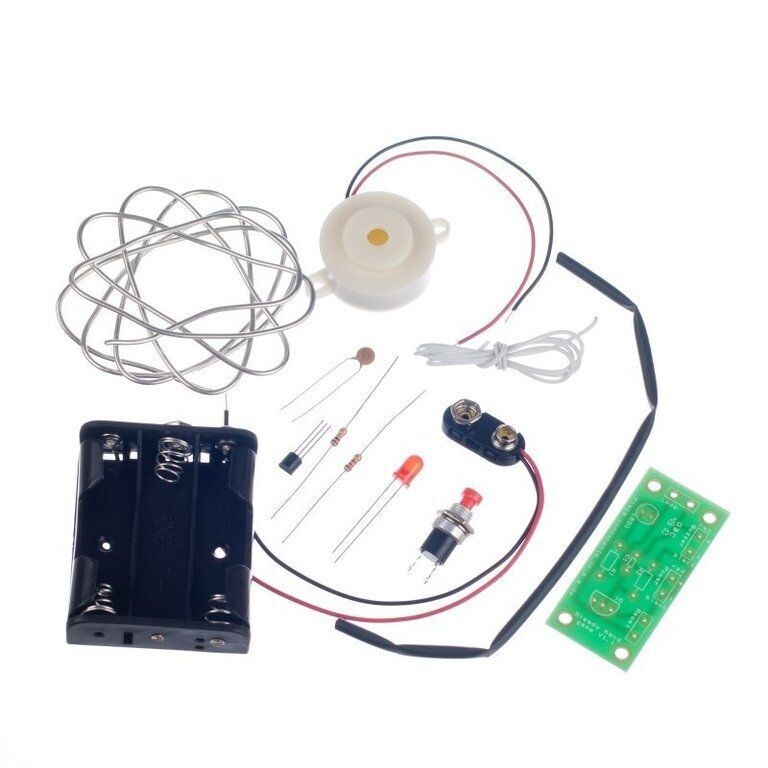

This kit contains :

1 x PP3 clip lead

1 x 3AA battery holder

1 x Piezo buzzer

1 x 220ohm resistor

1 x 10Kohm resistor

1 x 10nF capacitor

1 x thyristor 2N5061

1 x 5mm red LED

1 x push to make switch

0.5m connecting wire

1 x steady hand PCB

Heat shrink

Tinned copper wire and flexible connecting wire

For a pack of 24 the cables are supplied on reels with the remaining parts being individually bagged, for a pack of 1 the cables are supplied in the bag.

Requires x3 AA batteries
