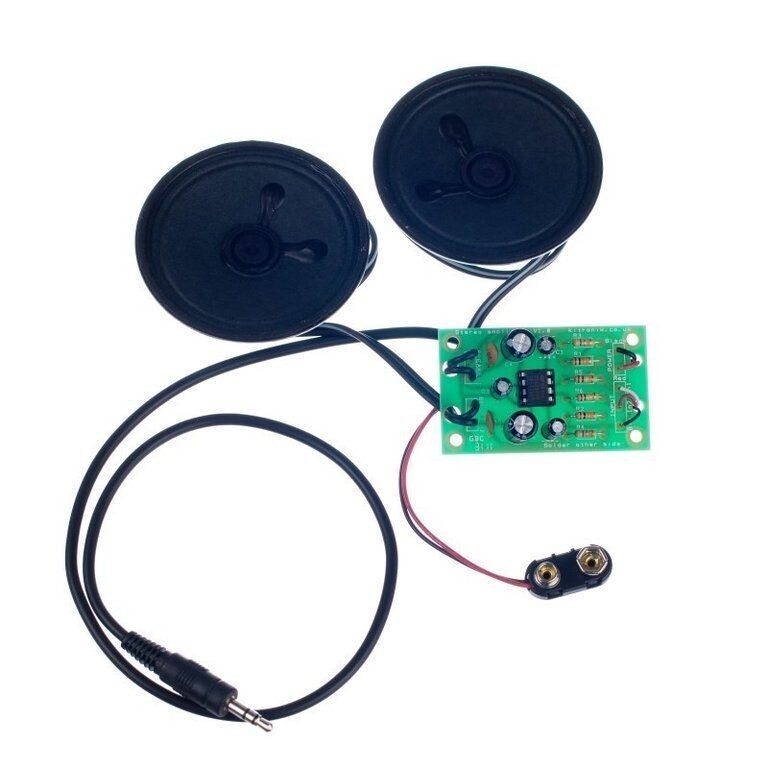

This stereo audio amplifier kit can be used with any personal stereo equipment, including MP3 players.

It can be powered by a 9V battery connected to the PP3 clip or you can use a power supply in which case you would need to buy a 2.1mm PCB Mount DC Socket and solder that to wires which you would then in turn solder to the PCB in place of the PP3 jack.

It uses a TDA2822M audio amplifier IC which can output 1W per channel. The kit is supplied with two speakers and a pre-made 3.5mm jack plug.

Features:

1W per channel stereo amplifier.

Contents:

1 x TDA2822M Stereo Amplifier IC.

1 x 8 Pin IC Holder.

2 x 10K Resistors.

2 x 4.7R Resistors.

2 x 100K Resistors.

2 x Ceramic Capacitor, 50V, 100nF.

2 x Electrolytic Capacitors, 16V, 470uF.

2 x Electrolytic Capacitors, 16V, 100uF.

1 x Electrolytic Capacitor, 16V, 10uF.

1 x Stereo Amp Cable.

1 x PP3 Battery Clip Lead (Heavy Duty).

2 x 8 Ohm 66mm Speakers.

1m Figure 8 Speaker Cable 2x (7x0.18mm).

1 x Stereo Amplifier PCB

Dimensions:

PCB Length: 58mm.

PCB Width: 35mm.

Requires:

Either: 1 x Zinc Chloride PP3 Battery.

Or: 1 x 12V Wall Power Unit and 1 x 2.1mm PCB Mount DC Socket.

Soldering Iron.

Solder.

Wire Cutters.

Wire Strippers.

Physical characteristics:

PCB Length: 58mm.

PCB Width: 35mm.

PCB Component Count: 18.

Electrical characteristics:

Voltage Nominal: 9V.

Voltage Range: 2V - 15V.

Standby Current: 7.5mA.

Current Max at Nominal Voltage: 180mA
