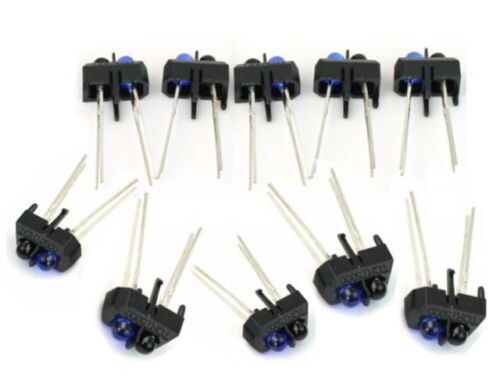

TCRT5000L TCRT5000 Reflective infrared sensor photoelectric switch

Compact construction, sense the presence of an object by using the reflective IR beam from the object

Consist of a phototransistor

Snap-in construction for PCB mounting

Plastic polycarbonate housing construction which prevents crosstalk

Specifications:

Sensing Distance: 12mm

Operating Wavelength: 950 mm

Package Height: 7 mm

Sensing Method: Reflective

Reverse Voltage: 5V

Forward Current: 60mA

Forward Surge Current: 3A

Emitter Power Dissipation: 100mW

Collector Emitter Voltage: 70V

Emitter Collector Voltage: 5V

Collector Current: 100mA

Detector Power Dissipation: 100mW

Sensor Total Power Dissipation: 200mW

Operating Temperature: -25°C ~ +85°C
