TOGGLE SWITCH SPDT ON-ON
+3
+2

TOGGLE SWITCH SPDT ON-ON

Store / Electronic Components / Switches / Toggle Switches
€2.80
In stock: 2 available
Product Details

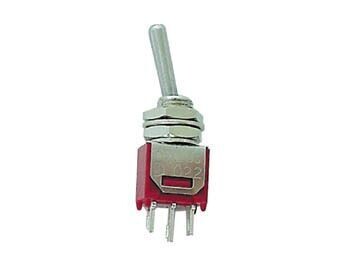

VERTICAL SUBMINIATURE TOGGLE SWITCH SPDT ON-ON - PCB TYPE NO THREAD

Product description
Specifications
switching position:
2-3: ON
OPEN: NONE
2-1: ON
remark: pcb type / no thread
contact rating: 3A with resistive load of 120Vac or 28Vdc
contact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts
dielectric strength: 1000Vrms at sea level
insulation resistance: min. 1000Mohm
electrical life: 60000 make-and-break cycles at full load
operating temperature range: -30°C to +85°C
materials:
case: diallyl phthalate (DAP)
toggle handle: brass, chrome-plated
bushing: brass, nickel-plated
housing: stainless steel
terminal/switch support: brass, electrolytic-plated
contacts: coin silver, silver-plated
centre contact and terminal: brass, silver-plated
