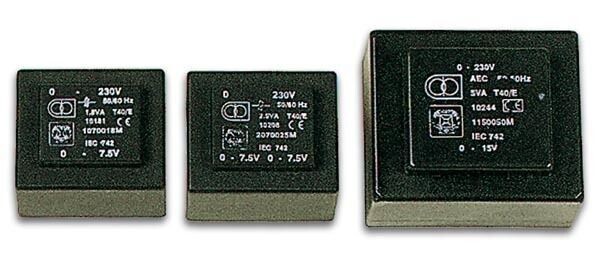

ENCAPSULATED TRANSFORMER 12VA 1 x 12V / 1 x 1.000A

Product description
Specifications
voltage: 1 x 12V
current: 1 x 1.000A
isolation resistance: >5Mohm / 500Vdc
electric strength: >5kV min.
designed for an ambient temperature of max. 40°C
thermal class E, materials to max. 120°
short-circuit protection up to 3VA
possibility of thermal fuse protection
max. temperature for class E: 95°C
primary tension: 230V ± 10%, 50/60Hz
secondary voltage tolerance: +7% - 3% at 230V and max. load
perfect solderability for wave bath
CE labelled
creepage distances and clearances according to IEC742
picture:
1*: bobbin with two chambers
2*: input winding
3*: encapsulation in epoxy resin
4*: output winding
5*: connection pins
6*: polyamide cover
7*: magnetic core
8*: safety transformer
9*: inherently short-circuit proof
10*: primary voltage
11*: nominal power / temperature
12*: manufacturer's reference
13*: ordercode
14*: meets :
15*: nominal secondary voltages
