VERTICAL SUBMINIATURE TOGGLE SWITCH
+3
+2

VERTICAL SUBMINIATURE TOGGLE SWITCH

Store / Electronic Components / Switches / Toggle Switches
€2.38
In stock: 20 available
Product Details

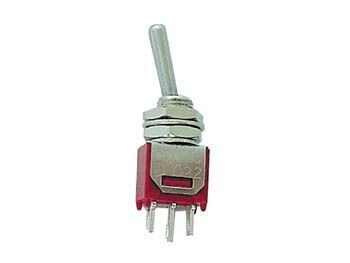

Velleman TS-4 VERTICAL SUBMINIATURE TOGGLE SWITCH SPDT ON-ON

Specifications

switching position:

2-3: ON

OPEN: NONE

2-1: ON

remark: -

contact rating: 3A with resistive load of 120Vac or 28Vdc

contact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts

dielectric strength: 1000Vrms at sea level

insulation resistance: min. 1000Mohm

electrical life: 60000 make-and-break cycles at full load

operating temperature range: -30°C to +85°C

materials:

case: diallyl phthalate (DAP)

toggle handle: brass, chrome-plated

bushing: brass, nickel-plated

housing: stainless steel

terminal/switch support: brass, electrolytic-plated

contacts: coin silver, silver-plated

centre contact and terminal: brass, silver-plated
