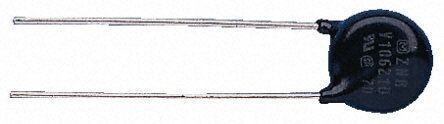

Varistor 13mm Disc 560V Pitch:7.5mm

Varistor 13mm Disc 560V Pitch:7.5mm

Store / Electronic Components / Varistor Metal-Oxide
€0.54
In stock: 24 available
Product Details

Panasonic ZNR Series Disc Varistor 310pF 50A 930V

Product Details
Metal Oxide Varistors ZNR Series E11
Large surge current and energy handling capacity in relation to the compact size.
Various pitches, sizes and voltages
RoHS compliant
Transient Voltage Suppressors (MOV)

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Varistor Voltage 560V
Maximum AC Voltage Rating 350V
Maximum DC Voltage Rating 450V
Clamping Voltage 930V
Clamping Current 50A
Energy 190J
Series ZNR
Diameter 13mm
Maximum Surge Current 6000A
Capacitance 310pF
Thickness 7.2mm
Dimensions 13 x 7.2mm
Lead Pitch 7.5mm

Data Sheet
